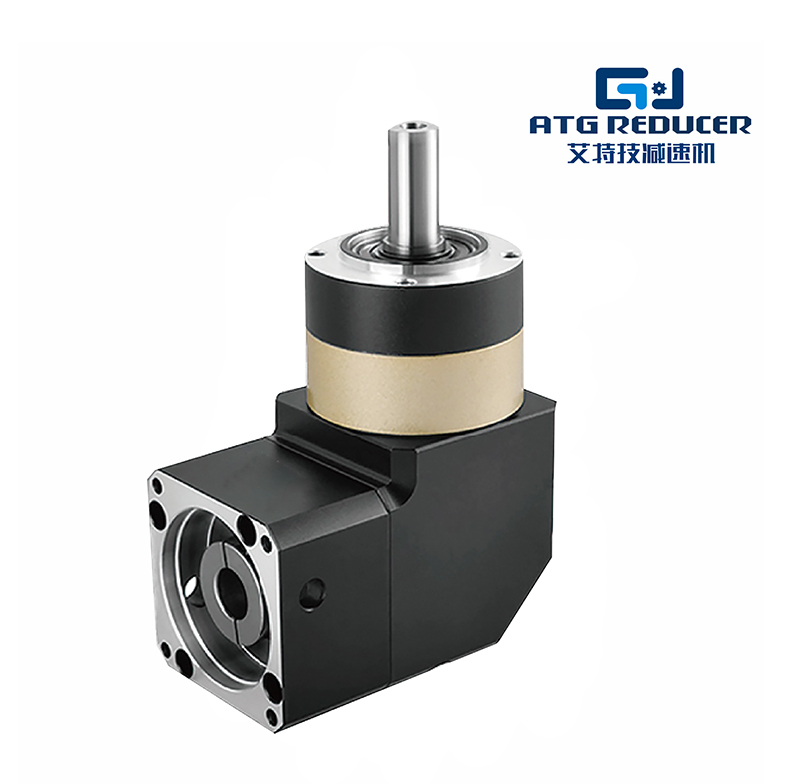

PGCR Planetary Gear Reducer: Precision Drive Solution for Industrial Automation
When I started designing and manufacturing transmission components for automation equipment, I always believed that a good reducer should do more than simply reduce speed. It should help machines run smoother, work longer, and achieve higher accuracy. This is exactly why we developed the PGCR Planetary Gear Reducer.
At Qiandeyi Transmission Technology (Suzhou) Co., Ltd., we focus on providing reliable intelligent drive solutions for global industrial customers. Located in Huaqiao Town, Kunshan City, Jiangsu Province, China, our company integrates research and development, manufacturing, sales, and technical service. With more than 20 years of experience from our core production team, we understand what modern automation equipment really needs.
The PGCR Planetary Gear Reducer is designed for applications that require high precision, high efficiency, strong load capacity, compact size, and stable operation. It is widely used in industrial robots, CNC machines, automated production lines, packaging machines, semiconductor equipment, lithium battery equipment, logistics systems, and many other intelligent manufacturing fields.
For customers searching for a reliable Precision Planetary Gearbox, Industrial Planetary Reducer, or low backlash planetary gear reducer, PGCR provides a balanced solution between performance, durability, and cost efficiency.
A planetary gear reducer is a mechanical transmission device that uses a planetary gear structure to transfer power. Unlike traditional gear reducers, the planetary design distributes the load through multiple gears working together. This structure allows the reducer to handle higher torque while keeping the overall size small.
In simple words, the PGCR Planetary Gear Reducer works like a smart power converter. It takes the high-speed rotation from a motor and changes it into a slower but stronger output. This helps machines move accurately and safely.
The main components include a sun gear, planetary gears, ring gear, carrier, input shaft, and output shaft. When the motor rotates the sun gear, the planetary gears rotate around it while also moving inside the ring gear. This special movement creates stable power transmission with excellent efficiency.
Because several gears share the load at the same time, our Planetary Gearbox can provide higher torque density compared with many conventional reducers. This makes it a preferred choice for automation equipment manufacturers who need reliable motion control.
The working principle of PGCR Planetary Gear Reducer is based on planetary gear transmission technology. The motor connects to the input shaft, which drives the sun gear. The sun gear transfers force to multiple planetary gears, and these gears deliver power through the carrier to the output shaft.
This design creates several important benefits:
Multiple gears share the mechanical load.
The reducer achieves higher torque output in a smaller housing.
The rotation process becomes smoother with reduced vibration.
The system maintains accurate positioning during repeated operations.
For example, in an industrial robot arm, every movement requires accurate control. A small positioning error can affect the final product quality. By using a low backlash planetary reducer, the robot can achieve faster response and more precise movement.
During product development, we focus on solving real problems faced by equipment manufacturers. The following features make PGCR Planetary Gear Reducer suitable for demanding industrial environments.
High Precision | Precision machining and strict tolerance control | Improved equipment positioning accuracy |
Low Backlash | Optimized gear matching technology | Smoother motion control |
High Torque Density | Planetary structure distributes load efficiently | Smaller machine design with stronger output |
Compact Structure | Space-saving gearbox design | Easier installation in limited spaces |
Long Service Life | High-quality materials and strict testing | Reduced maintenance frequency |
Source: Product performance data based on Qiandeyi internal engineering specifications and manufacturing inspection standards.
Today’s factories are becoming smarter. Robots and automated machines are replacing manual operations in many industries. However, automation equipment can only perform well when every transmission component works accurately.
A small problem inside a reducer can create bigger problems in the entire production line. Excessive backlash may reduce positioning accuracy. Poor heat control may shorten service life. Unstable transmission may increase machine downtime.
This is why we pay close attention to every detail during the development of PGCR Planetary Gear Reducer. From selecting raw materials to final testing, every step follows strict quality management procedures.
Our products have passed ISO9001, ISO14001, and ISO45001 triple-system certification requirements. We believe that reliable manufacturing starts with responsible processes.
When customers choose a planetary gear reducer, they are not only looking for a product that can reduce speed. They need a transmission solution that can work continuously, maintain accuracy, and handle challenging industrial environments. Based on years of manufacturing experience, we designed the PGCR Planetary Gear Reducer to meet these real-world requirements.
One of the biggest advantages of our planetary gearbox is its excellent balance between strength and precision. Some reducers can provide high torque but lose accuracy. Others can achieve precision but cannot handle heavy loads. PGCR is developed to achieve both.
Precision is one of the most important factors in automation equipment. The PGCR Planetary Gear Reducer uses precision-machined gears and carefully controlled assembly processes to maintain stable positioning performance.
For industries such as robotics and semiconductor equipment, even a small movement error may affect production quality. Our reducer helps equipment manufacturers achieve smooth and accurate movement during repeated operations.
Backlash means the small amount of movement between gear teeth when direction changes. Too much backlash can reduce machine accuracy, especially in robotic arms, CNC machines, and positioning systems.
The PGCR low backlash planetary gearbox adopts optimized gear matching technology and precision assembly methods. This helps reduce unnecessary movement and improves the overall response speed of automated equipment.
Energy efficiency has become increasingly important for modern factories. A transmission system with high efficiency can reduce energy waste and improve machine performance.
The planetary structure allows multiple gears to share the load, reducing pressure on individual components. This design helps the PGCR Planetary Gear Reducer achieve smooth operation with efficient power transfer.
Industrial equipment often needs to operate for long hours under heavy loads. A weak transmission component may cause unexpected downtime and increase maintenance costs.
Our planetary reducer is manufactured with high-quality materials and strict machining control. The internal structure provides excellent strength, allowing it to work reliably in demanding production environments.
To help customers understand the advantages of planetary transmission technology, we compare common transmission types based on general industry characteristics.
Structure Size | Medium | Larger | Compact |
Torque Density | Medium | Low to Medium | High |
Transmission Efficiency | 80%-90% | 50%-90% | 90%-95% |
Backlash Control | Average | Higher | Excellent |
Application Field | General Machinery | Simple Speed Reduction | Robotics and Precision Automation |
Source: General industry comparison data combined with Qiandeyi product engineering evaluation. Actual performance depends on reducer model, ratio, load condition, and operating environment.
One reason we continue improving PGCR is that different industries have different requirements. Some customers need extremely high accuracy, while others need strong torque and long working hours. Our planetary gearbox series has been developed to support various applications.
Industrial robots require precise movement and quick response. The reducer directly affects the robot’s positioning accuracy and working stability.
The PGCR Precision Planetary Reducer is commonly used in robot joints, rotary mechanisms, and automated handling systems where compact size and accurate control are important.
CNC machines require stable transmission during cutting, drilling, and positioning processes. Any vibration or positioning error can influence machining quality.
With low backlash and high rigidity, PGCR helps CNC equipment achieve reliable motion performance.
Modern factories depend on continuous production. Conveyor systems, assembly equipment, inspection machines, and robotic stations all require dependable drive components.
Our Planetary Gear Reducers help automated production systems maintain smooth operation and reduce unexpected maintenance.
The new energy industry, including lithium battery manufacturing equipment, requires clean, accurate, and stable mechanical transmission.
PGCR Planetary Gear Reducer supports applications such as battery assembly equipment, testing machines, and precision positioning systems.
Medical devices and semiconductor equipment often require extremely precise movement in limited installation spaces.
The compact design and stable performance of PGCR make it suitable for equipment where accuracy and reliability are critical.
A high-quality reducer is not created by one single process. It requires careful control from material selection to final inspection. At Qiandeyi, we manage every production step to ensure consistent quality.
Raw Material Selection | Check material strength and consistency before production |
Precision Machining | Control gear accuracy and dimensional tolerance |
Gear Processing | Improve tooth surface quality and transmission stability |
Assembly | Adjust internal clearance and component matching |
Performance Testing | Test accuracy, backlash, noise, vibration, temperature, and load |
Final Packaging | Use shock-resistant foam and export-grade protection |
Source: Qiandeyi internal manufacturing process standards.
We understand that delivery time is important for equipment manufacturers. For standard PGCR Planetary Gear Reducer products, the normal production period is around 7–15 days. Customized products usually require 15–30 days depending on specifications and order quantity.
Before shipment, every reducer goes through multiple inspections, including:
Accuracy inspection
Backlash testing
Noise testing
Vibration testing
Temperature rise testing
Load performance testing
For international customers, we provide flexible transportation options including express delivery, air freight, sea freight, and railway transportation. Products are protected with vibration-resistant foam and individual cartons. Large orders are reinforced with export wooden cases or pallets to ensure safe delivery.
When I talk with customers around the world, I often hear the same question: “How can we choose a reliable planetary gearbox supplier?” My answer is simple: a good supplier should not only provide products, but also understand customer applications and offer long-term support.
At Qiandeyi Transmission Technology (Suzhou) Co., Ltd., we focus on building lasting relationships with our customers. Since our establishment in 2013, we have continuously invested in product development, manufacturing technology, and quality management.
As a national high-tech enterprise, we combine research, production, sales, and service to provide complete intelligent drive solutions. Our experience in planetary transmission technology allows us to support customers from product selection to final application.
Our core production team has more than 20 years of industry experience. We understand that every machine has different working conditions, including speed requirements, torque requirements, installation space, and operating environment.
Instead of offering only standard products, we also help customers select suitable specifications and provide customized solutions when needed.
Quality is built into every production step. We have obtained ISO9001, ISO14001, and ISO45001 triple-system certification. From raw material inspection to finished product testing, we maintain strict process control.
Before every PGCR Planetary Gear Reducer leaves our factory, it must pass multiple inspection procedures. These include precision testing, backlash measurement, noise analysis, vibration testing, temperature monitoring, and load testing.
A precision reducer requires precision manufacturing equipment. Our factory is equipped with professional production machines and high-accuracy testing instruments to ensure product consistency.
Through continuous improvement of manufacturing processes, we are able to provide planetary gear reducers with stable performance for customers in more than 30 countries.
We support customers from different regions with flexible production and delivery options. Whether it is a small trial order or a large-volume industrial project, we arrange production according to customer requirements.
Our payment methods include T/T bank transfer. For large quantity orders, payment methods such as L/C can be discussed. Transportation methods include express, air freight, sea freight, and railway shipping.
Choosing the correct planetary gearbox is important because different machines have different requirements. Before selecting a reducer, we usually recommend customers consider several key factors.
Motor Type | What motor will connect with the reducer? | Determines installation compatibility |
Output Torque | How much load does the machine need? | Affects reducer size and strength |
Reduction Ratio | What output speed is required? | Controls speed and performance |
Accuracy Requirement | Is precision positioning needed? | Determines backlash level |
Working Environment | Is it used in dust, heat, or continuous operation? | Influences protection and design selection |
Source: Qiandeyi engineering team application selection guidelines.
PGCR Planetary Gear Reducer is mainly used for industrial automation applications requiring accurate motion control and reliable power transmission. Common applications include industrial robots, CNC machines, automated production lines, packaging equipment, logistics systems, semiconductor equipment, and new energy manufacturing equipment.
The biggest difference is the internal planetary structure. Multiple planetary gears share the load together, allowing the reducer to achieve higher torque, better efficiency, and a more compact design compared with many traditional reducers.
Yes. We provide customized solutions according to customer requirements, including different reduction ratios, installation dimensions, output structures, and performance requirements. Customized production time is usually around 15–30 days depending on specifications and order quantity.
We control quality throughout the entire manufacturing process. Every reducer is tested before delivery, including accuracy, backlash, noise, vibration, temperature rise, and load performance inspection.
Standard products usually require 7–15 days for production. Customized products normally require 15–30 days. The exact delivery time depends on product specifications and order volume.
We use vibration-resistant foam and individual cartons for standard products. For large export orders, we use reinforced wooden cases or pallets to protect products during transportation.
The future of manufacturing is moving toward higher automation, smarter equipment, and more efficient production. In this environment, transmission components play a key role in machine performance.
At Qiandeyi, we continue improving our PGCR Planetary Gear Reducer technology because we believe reliable motion starts with reliable components. Our goal is not only to manufacture planetary gearboxes but also to help customers create better machines.
With professional manufacturing experience, strict quality control, advanced production technology, and global service capability, we are ready to support automation companies, machine builders, and industrial partners worldwide.
